3D model and faceting diagram · 26 facets · 8.05 x 8.05 mm
The single cut, or eight cut: an octahedron with the top sawn off for a table and the corners bevelled to a regular octagon. Every crown facet is congruent and so is every pavilion facet, so the cut has exactly one crown angle and one pavilion angle.
Drag to turn
The single cut, or eight cut: an octahedron with the top sawn off for a table and the corners bevelled to a regular octagon. Every crown facet is congruent and so is every pavilion facet, so the cut has exactly one crown angle and one pavilion angle.
Today the same plan is still used for very small melee stones, where a full brilliant would be wasted.
Measured from the delivered model, not quoted from a standard.
The same geometry behaves differently in every material. Light that meets a pavilion facet at less than the stone's critical angle passes straight out of the back instead of reflecting, which shows face-up as a window. For each stone we measured how much of this model's pavilion, as seen face-down, is steeper than that angle, and what the model weighs at its reference size.
| Stone | Refractive index | Critical angle | Pavilion reflecting head-on light | Weight at this size | Verdict |
|---|---|---|---|---|---|
| Diamond | 2.417 | 24.4° | 99% | 2.00 ct | Holds head-on light |
| Moissanite | 2.648 to 2.691 | 22.2° | 99% | 1.83 ct | Holds head-on light |
| Cubic Zirconia | 2.15 to 2.18 | 27.7° | 99% | 3.30 ct | Holds head-on light |
| Ruby | 1.762 to 1.770 | 34.6° | 99% | 2.27 ct | Holds head-on light |
| Sapphire | 1.762 to 1.770 | 34.6° | 99% | 2.27 ct | Holds head-on light |
| Emerald | 1.577 to 1.583 | 39.4° | 99% | 1.55 ct | Holds head-on light |
| Amethyst | 1.544 to 1.553 | 40.4° | 99% | 1.51 ct | Holds head-on light |

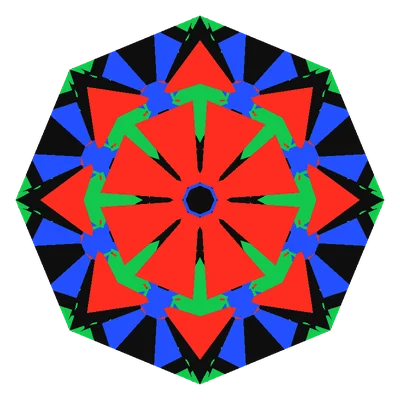

Head-on light, first reflection. A full light-return census is part of the Brilliani Labs engine and will come to this page.
Six formats: STEP (the exact faceted solid for CAD), 3DM for Rhino, STL and OBJ meshes, FBX for Blender, 3ds Max, Maya, Cinema 4D, Unity and Unreal, and GLB for the web and AR. All are in millimetres at real-world scale, with 26 planar facets.
Yes. The cutting files contain a GemCad .asc design (18 + 8 girdles = 26 facets, 96 index, 8-fold mirror-image symmetry), a tier table with angles, indices and cutting order in CSV, and a printable faceting diagram.
We measured the pavilion of this model against the critical angle of each stone. In Diamond, Moissanite, Cubic Zirconia, Ruby, Sapphire, Emerald, Amethyst, the whole pavilion reflects head-on light.
We check it facet by facet against the 3D model it was written from. Every crown and pavilion facet within 0.001° of the 3D model (average under 0.001°). The angles are the ones you set on the machine; the 3D model is the same stone you render or set.
The model measures 8.05 x 8.05 x 5.43 mm, which is 2.00 ct in diamond. The same size weighs 1.83 ct in moissanite, 3.30 ct in cubic zirconia, 2.27 ct in ruby, 2.27 ct in sapphire, 1.55 ct in emerald, 1.51 ct in amethyst. Scale it uniformly to any size: weight follows the cube of the size.
Yes. The mesh is watertight and manifold, with outward normals and no duplicate vertices, so it prints and casts without repair. Use the STEP file when you need the exact faceted solid in CAD.
The Old Single Cut as exact geometry: 26 planar facets, real-world scale, ready for CAD, rendering, printing and casting.
The Old Single Cut as a faceting design: 18 + 8 girdles = 26 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.
Want to know when checkout opens? Email us and we will tell you once.
